Laser Interferometer
Coming soon: FDM-3 with sub-nanometer resolution

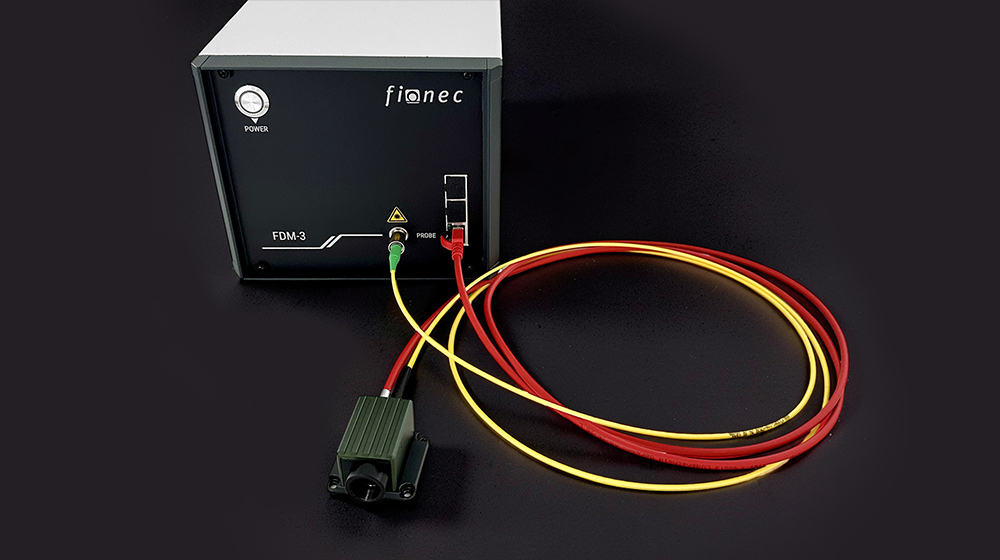

The FDM-3 laser interferometer from fionec offers up to three compact and lightweight measurement heads, making it ideal for integration as control interferometers. With measuring distances of up to one meter per measurement head, most length measurements in the production environment can be optimally addressed. Thanks to a high measuring frequency of 40 kHz, integrated interfaces and customized software solutions, a complete and straightforward integration into existing systems is possible. The laser interferometer impresses with an attractive price-performance ratio, without compromising on measurement resolution.
Your benefits
- Results with subnanometer resolution
- Non-contact and wear-free
- Small measurement head and compact receiver
- Up to three measurement heads per system, e.g. for the measurement in X, Y, Z
- Ideally suited as control and measurement interferometer
- Easy-to-automate and fully integrable
- Electromagnetic compatibility (EMC)
|
|
System characteristics

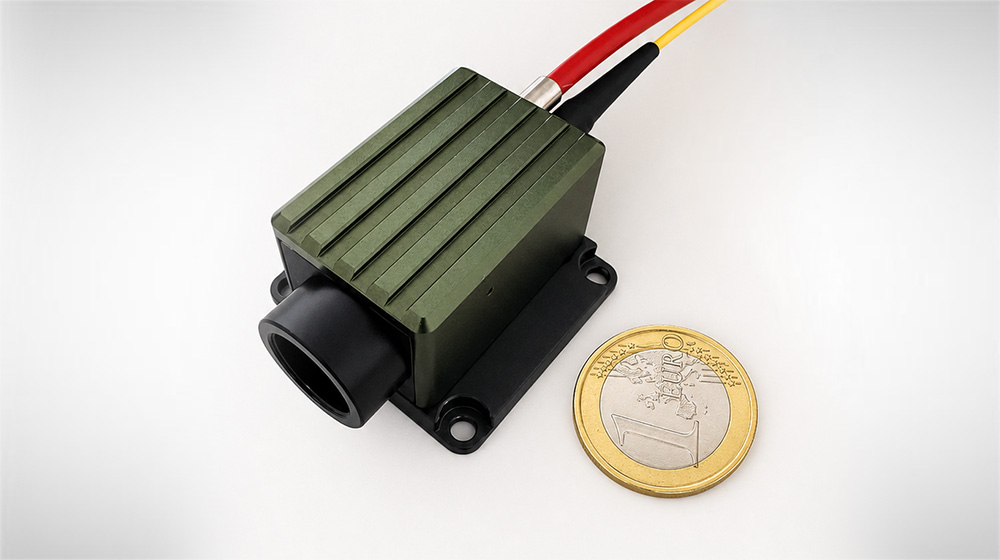

FDM-3 (measurement head)
|
|
Control software
|
|
Laser Interferometer
| Measurement principle |
phase-measurement interferometry |
| Measurement range |
up to 1 m |
| Working distance |
any (between 0-1 m) |
| Measuring frequency |
40 kHz (fixed) |
| Resolution (typ. Std.Dev.) |
< 1 nm* |
| Multi-point measurement |
parallel operation of up to 3 measurement heads |
| Programming interfaces |
API, DLL |
| Included components |
measurement head, user interface software (basic), receiver, power supply |
Measurement Head
| Interchangeable objectiv |
for collimated or focused operation |
| Measurement direction |
axial (0°) |
| Environmental measurement module (optional) |
completely integrated |
| Dimensions |
40 x 30 x 25 mm |
Software
| User interface software (FDM-Control) |
status panel with signal quality indicator |
| |
prepared for customer specified evaluation e.g. vibration measurement |
Control Unit
| System interfaces (configurable) |
Gate IN, Trigger OUT: TTL 5V, Ethernet, GPIO |
| Dimensions |
165 x 140 x 255 mm |
| Ext. power supply |
230 V (AC) |
|
Applications
Ultra-precision metrology
- Fast detection of distances with sub-nanometer resolution
- Ideally suited as control measurement interferometer
- Up to 3 measuring heads can be used simultaneously
- Intuitive control software with rapid-start button
- Unparalleled price-performance ratio
|
|
Highly accurate distance measurement
- Measuring expansion, drift, wear and vibrations in and on ultra-precision machines and machine tools
- Position detection for high-precision alignment of parts, components and linear stages
|
|
Monitoring distances or positions
- Monitoring of traverse motion of ultra-precision stages
- Monitoring of position markers
- Measurements in difficult to access spaces, e.g. at or on linear stages (also traveling)
|
|
Integration in precision coordinate measuring machines, automatic testing set-ups or UP-machines
- Compatibility and automation thanks to serial interfaces
- Single or multi-point measurements
- Inline measurements at production speed
- Industry 4.0 applications
|
|
We’ll be happy to develop customized solutions for your specific measurement task.
|
|
|
